Over view

The EL-480 digital flat soft light is imported from the US with high chromogenic low power LED as the light emitting element.lt is arranged to form high density and large area surface light source.

The lamps and lanterns are controlled by digital circuit, and the brightness and color temperature are adjusted without flickering and no jitter.

It has many advantages, such as high luminous efficiency, high color rendering, low glare and long life. It is mainly applied to news studio and virtual studio of TV stations.AII kinds of conference rooms, multi-function rooms and other places are used as functional lighting.

The structure is made of precision sheet metal and CNC processing technology, which greatly improves the heat dissipation efficiency of the lamp when used, and the structure is more durable.

Adopting the international first-class power supply scheme, the lamp performance is more stable, and the effective service life can reach 50000 hours.

Equipped with high light intensity soft plate, light output is soft and uniform, no infrared and ultraviolet light, surface brightness is less than three primary color fluorescent lamp, no glare.No glare.

Equipped with various international DXM interfaces, it can be used in all standard DMX scenarios.

Lamps and lanterns have high luminous efficiency and 50% energy saving than traditional three color fluorescent lamps.

The brightness and color temperature are controlled by two ways of DMX512 signal control andlocal control. The brightness adjustment range is 0 to 100%, and the color temperature of the mixing lamp is

controlled .The adjustment range is 3200K to 5600K.


Features

EL-480 正反图.jpg

  1. Product list:

  2.            1. LED panel -1pc                                           2. DMX512 cable

  3.            3. Barndoor-1pc,                                            4. Soft plate-1pc

  4.            5. Power cable -1pc                                       6. Instructions -1pc



         Application scenarios:

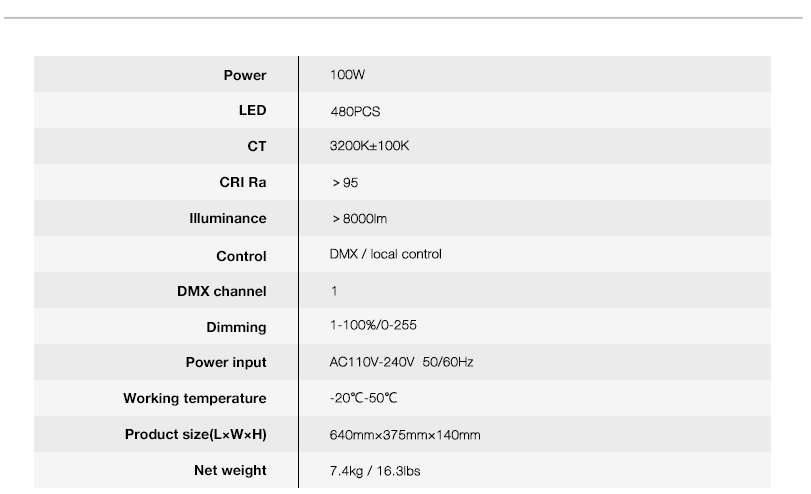

Tech spec

EL-480 数据.jpg
