Over view

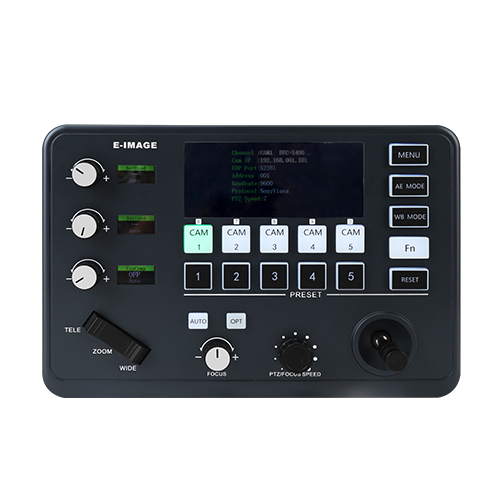

CTR100 is a mini and compact broadcast application-level controller solution. Its key layout is designed with ergonomic operation experience in mind. The distributed design of the 2-axis joystick and zoom bridge keys improves controllability, making it stronger and more stable. The silicone backlit buttons offer a more comfortable operation. It features built-in VISCA, UDP, and Pelco P/D multi-control protocols, and supports simultaneous communication via multiple interfaces including RS422, RS485, RS232, and IP (UDP). Equipped with 5 camera channel shortcut keys and five infinitely variable knobs, along with a 4-color LED multi-screen display design, it is easy to set up and operate. It supports auto exposure and white balance with multi-mode visual switching, and real-time value presentation for more intuitive control. It also features one-button auto, manual, and OPT focus modes, supports 7-level pan/tilt rotation speed and zoom speed with visual adjustment. It is primarily used in video conferencing, ProAV systems, studios, broadcasting solutions, education AV, telemedicine, and events & sports live streaming system solutions.

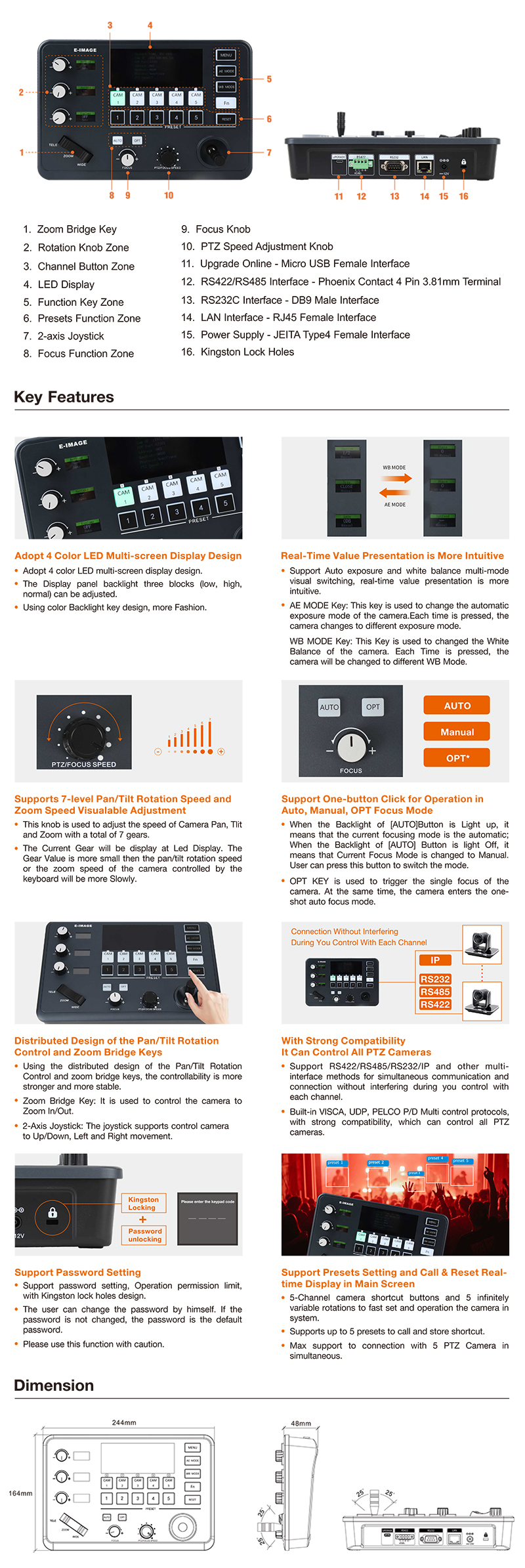

Features

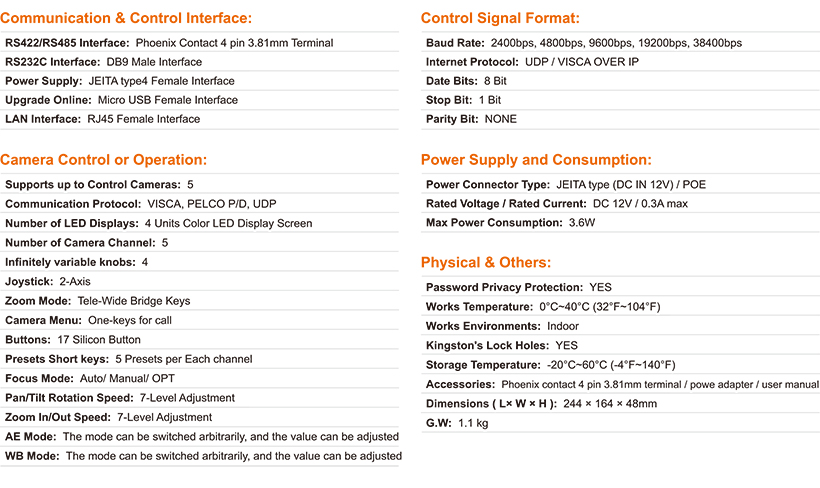

Tech spec

Recommended accessories

Recommended kits
